Seals

The pressure difference between air and exhaust gases requires LUVO sealing to separate the exhaust gas stream from the air stream.

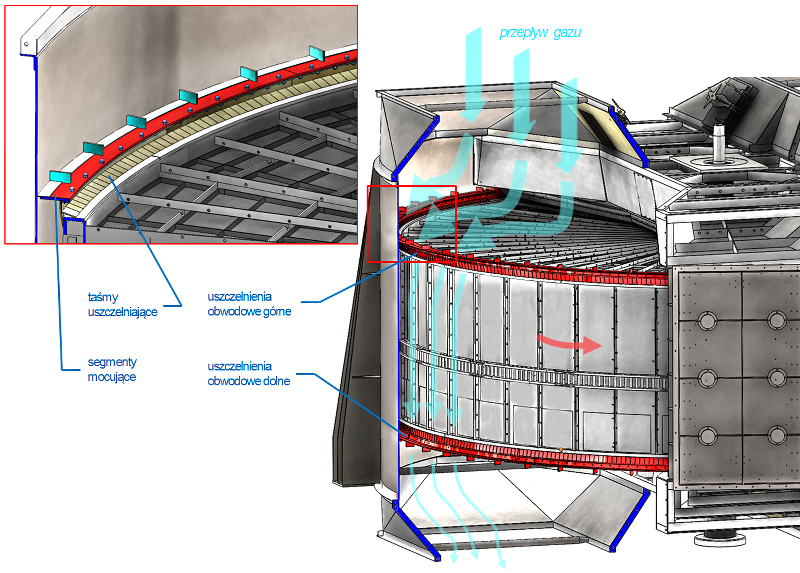

CIRCUMFERENCIAL SEALS

seal the rotor circuit, preventing air and fuel gas from entering between the housing wall and the rotating rotor

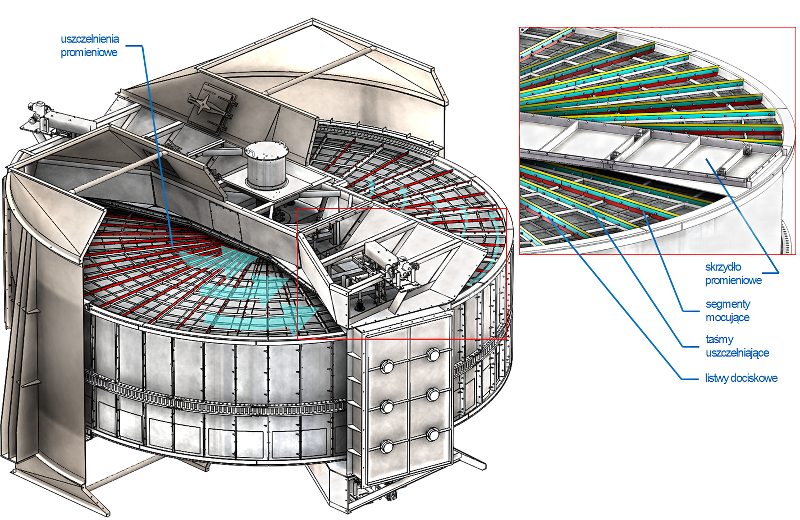

RADIAL SEALS

are mounted radially on the rotor and seal the space between the rotor and the radial blades.

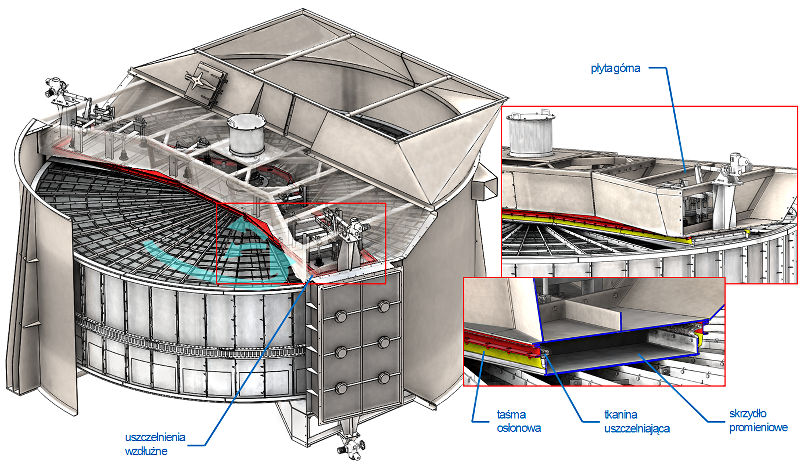

LONGITUDINAL SEALS

are mounted along the radial leaves. They seal the space between the radial leaf and the upper or lower housing plate.

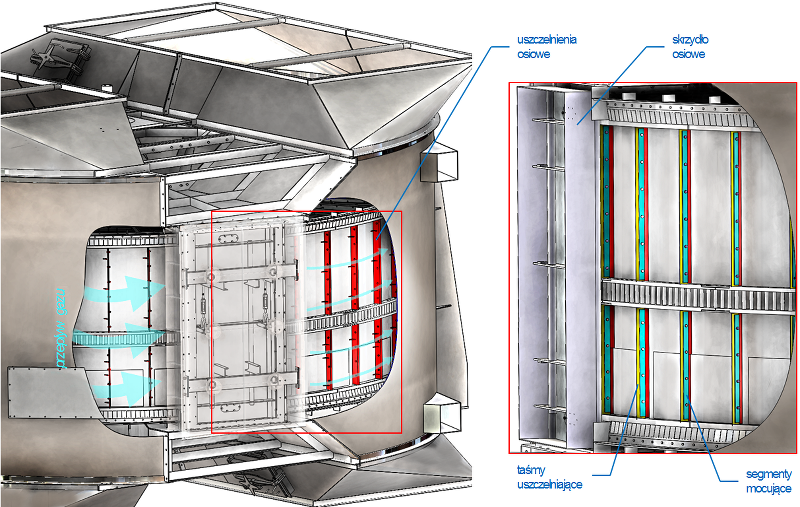

AXIAL SEALS

mounted on the outer shell of the rotor, they cooperate with the axial wings, limit the leakage of air into the exhaust gases, which was not stopped by peripheral seals and circulates between the housing and the rotor.

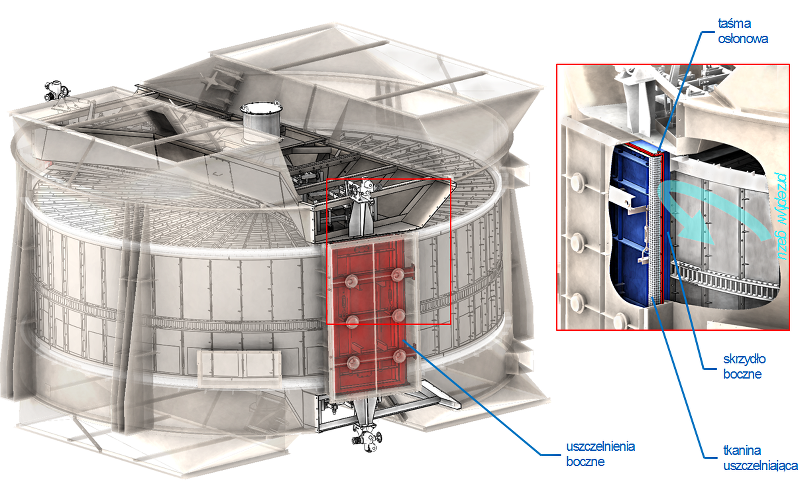

SIDE SEALS

they are mounted around the axial sashes and seal the space between the axial windows and the axial sashes cooperating with the axial tapes.
